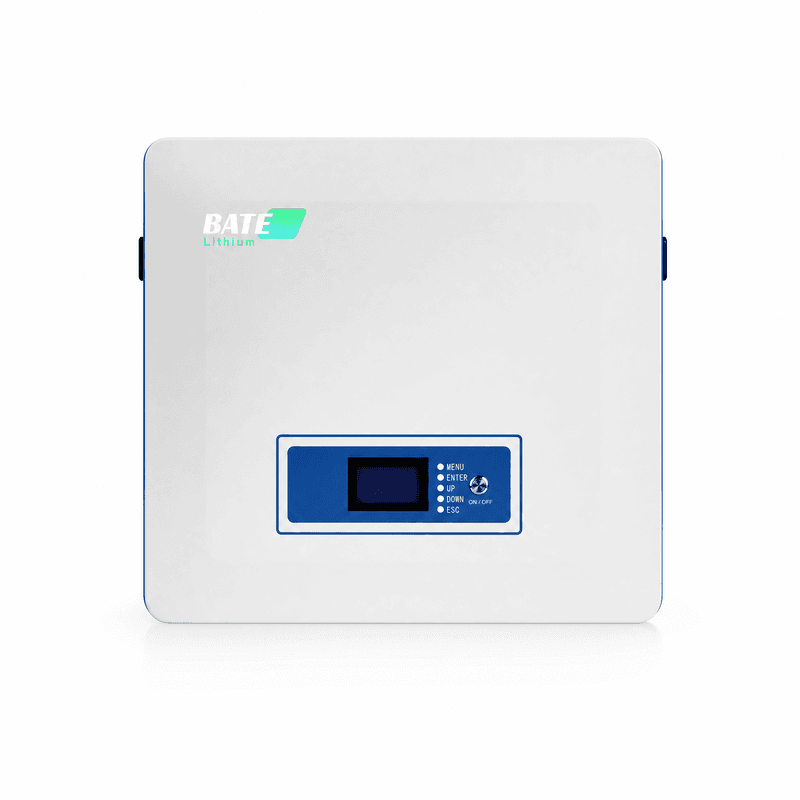

LiFePO4 25.6V Wall Mounted Battery Series
LiFePO4 25.6V Wall Mounted Battery Series (100Ah~314Ah), space-saving design, smart BMS, multi-inverter compatible. 5-year warranty.
Reference price: $899.00 USDPre-order
Stock: confirmed by orderFor households, installers, dealers, hotels, villas, and factories.
Battery, inverter, PV panel, and accessory availability is confirmed within 24h by city, quantity, and project configuration.
Warranty 5 years
Worldwide shipping
100% Original
Main Features
- Wall-mounted design saves floor space
- Smart BMS with comprehensive protection
- Multi-inverter compatible (PYLON, DEYE, GROWATT...)
- Flexible RS485/RS232/CAN communication
- Elegant design, easy installation
Technical Specifications
| 100Ah | 200Ah | 314Ah | |
|---|---|---|---|
| Capacity | 100Ah / 2560Wh | 200Ah / 5120Wh | 314Ah / 8038Wh |
| Charge/Discharge Current | 10A ~ 100A | 20A ~ 200A | 30A ~ 200A |
| Size | 360×230×410 mm | 360×230×460 mm | 360×230×510 mm |
| Weight | 29 kg | 47 kg | 67 kg |
| Voltage | 25.6V | 25.6V | 25.6V |
| Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Max Charge Voltage | 29.2V | 29.2V | 29.2V |
| Min Discharge Voltage | 20V | 20V | 20V |
| Working Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| BMS | Charge/Discharge/Short/Temp/Balance Protection | Charge/Discharge/Short/Temp/Balance Protection | Charge/Discharge/Short/Temp/Balance Protection |
| Communication | RS485, RS232, CAN | RS485, RS232, CAN | RS485, RS232, CAN |
| Inverter Wey E Fit Work With | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Warranty | 5 years | 5 years | 5 years |
Free consultation for WhatsApp
We go reply within 5 minutes
Questions Wey People Dey Ask
Wetin be di warranty for LiFePO4 25.6V Wall Mounted Battery Series?▼
LiFePO4 25.6V Wall Mounted Battery Series get 5 years warranty from Batelithium. We go give you full technical support for di warranty time.
Una dey ship to oda countries?▼
Batelithium dey ship go anywhere for world. Free shipping for bulk orders. Contact our team make we give you custom quote.
